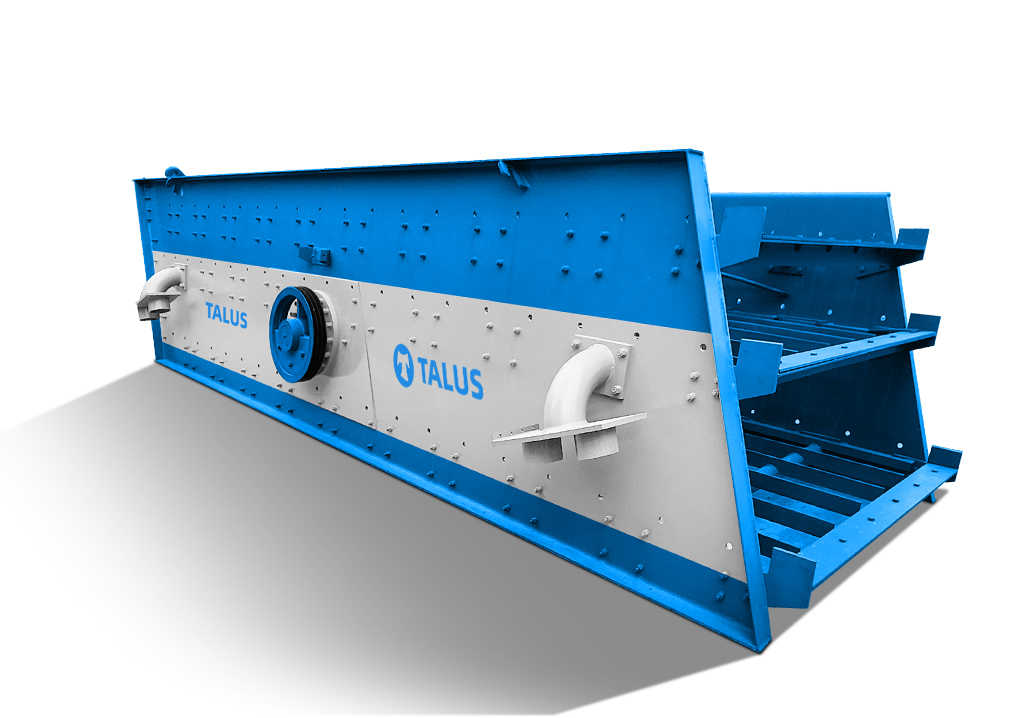

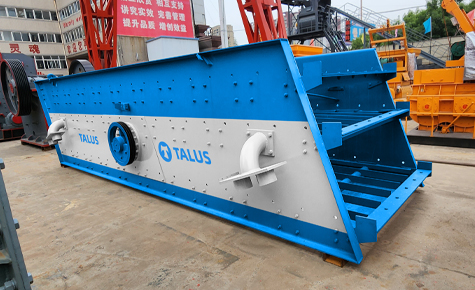

YK Series Inclined Vibrating Screen

The YK series inclined vibrating screen, developed by Henan Talus Equipment Manufacturing, is characterized by mature technology and strong universality of accessories. It has high vibration intensity, high structural strength, simple maintenance, and a long service life. It is suitable for various screening operations such as heavy, medium, and fine screening. This screening machine is ideal for processing products after primary and secondary crushing, as well as inspecting screening and final product in the processes.

YK Series Inclined Vibrating Screen

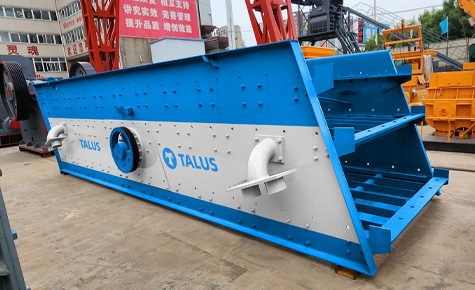

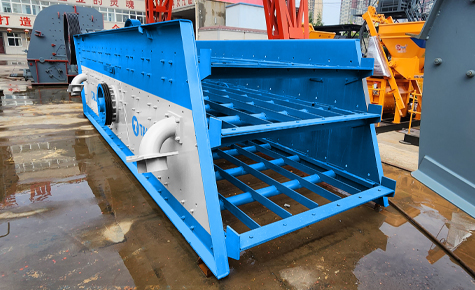

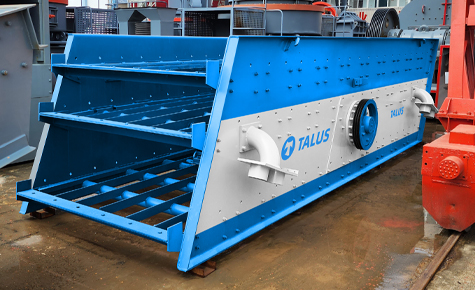

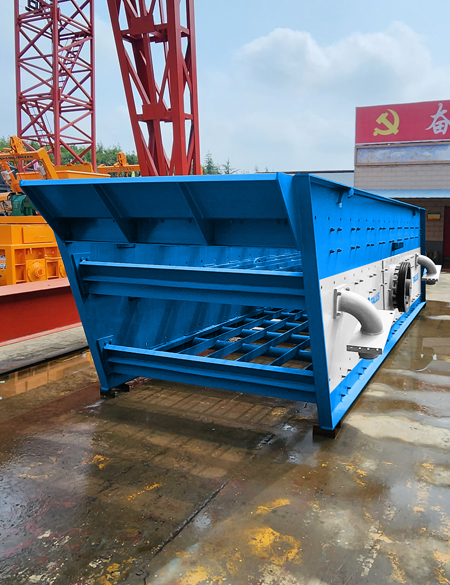

Product show

Leave Message Online

Technical Parameter

Model	Number of Decks	Mesh Area (m²)	Double amplitude (mm)	Vibration frequency (HZ)	Feeding size (mm)	Processing capacity (t/h)	Screen size L×H(mm)	Power (kW)	Weight
YKZ1237	1	4.4	6-8	970	0-200	30-180	1200×3700	11	3.6
2YA1237	2	4.4	6-8	970	200	40-150	1200×3700	11	3.9
3YK1237	3	4.4	6-8	970	200	25-170	1200×3700	11	4.3
4YK1237	4	4.4	6-8	970	200	25-200	1200×3700	15	4.6
YK1245	1	5.4	6-8	970	250	40-150	1200×4500	15	3.8
2YK1245	2	5.4	6-8	970	250	40-150	1200×4500	15	4.2
3YK1245	3	5.4	6-8	970	250	40-150	1200×4500	18.5	6.1
YK1545	1	6.75	6-8	970	300	100-180	1500×4500	11	3.9
2YK1545	2	6.75	6-8	970	300	100-180	1500×4500	15	4.4
3YK1545	3	6.75	6-8	970	300	100-180	1500×4500	15	4.9
4YK1545	4	6.75	6-8	970	300	100-180	1500×4500	18.5	5.3
2YK1548	2	7.2	6-8	970	300	63-300	1500×4500	15	4.9
3YK1548	3	7.2	6-8	970	300	180-280	1500×4500	15	6
4YK1548	4	7.2	6-8	970	300	35-315	1500×4500	15	7
YK1848	1	8.64	6-8	970	300	100-250	1800×4800	18.5	4.7
2YK1848	2	8.64	6-8	970	300	100-500	1800×4800	18.5	6.5
3YK1848	3	8.64	6-8	970	300	100-500	1800×4800	18.5	7.5
4YK1848	4	8.64	6-8	970	300	100-500	1800×4800	22	9.1
YK1860	1	10.8	6-8	970	400	100-450	1800×6000	22	4.9
2YK1860	2	10.8	6-8	970	400	100-300	1800×6000	22	7.2
3YK1860	3	10.8	6-8	970	400	100-250	1800×6000	22	8.3
4YK1860	4	10.8	6-8	970	400	100-250	1800×6000	22	9.2
YK2160	1	12.6	6-8	970	400	100-864	2100×6000	30	5.9
2YK2160	2	12.6	6-8	970	400	150-800	2100×6000	30	7.8
3YK2160	3	12.6	6-8	970	400	150-800	2100×6000	30	10.7
4YK2160	4	12.6	6-8	970	400	150-800	2100×6000	37	11.1
YK2460	1	14.4	6-8	970	400	150-875	2400×6000	37	6.2
2YK2460	2	14.4	6-8	970	400	150-875	2400×6000	37	8
3YK2460	3	14.4	6-8	970	400	150-875	2400×6000	37	10.7
4YK2460	4	14.4	6-8	970	400	150-875	2400×6000	37	12.8
YK2865	1	18.2	6-8	700-900	400	150-875	2800×6000	37	9.8
2YK2865	2	18.2	6-8	700-900	400	150-875	2800×6000	37	11.4
3YK2865	3	18.2	6-8	700-900	400	150-875	2800×6000	45	13
4YK2865	4	18.2	6-8	700-900	500	200-875	2800×6000	45	14.2
YK3060	1	18	6-8	700-900	500	200-900	3000×6000	37	9.1
2YK3060	2	18	6-8	700-900	500	200-900	3000×6000	37	12.6
3YK3060	3	18	6-8	700-900	500	200-900	3000×6000	45	15.6
YK3072	1	21.6	6-8	700-900	500	200-950	3000×7200	37	9
2YK3072	2	21.6	6-8	700-900	500	200-950	3000×7200	45	12.8
3YK3072	3	21.6	6-8	700-900	500	200-950	3000×7200	2×37	16.8
4YK3072	4	21.6	6-8	700-900	500	200-950	3000×7200	2×37	19.5

Any change of the technical data shall not be advised additionally.

Maintenance tips

The equipment should be lubricated according to requirements, and you should pay attention to the oil temperature, oil pressure, flow rate and other parameters.

When excessive noise or vibration occurs during the operation, the equipment should be shut down and inspected quickly.

Pay attention to the product quality and productivity, in order to solve the problem as soon as we find it.
