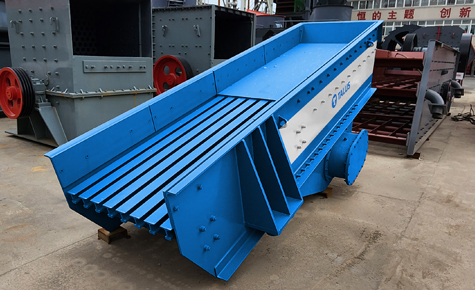

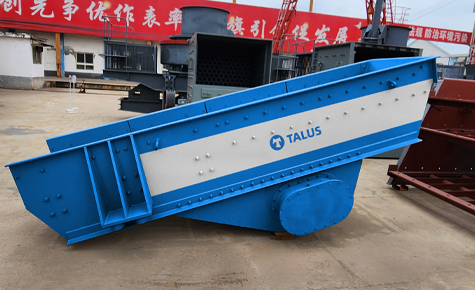

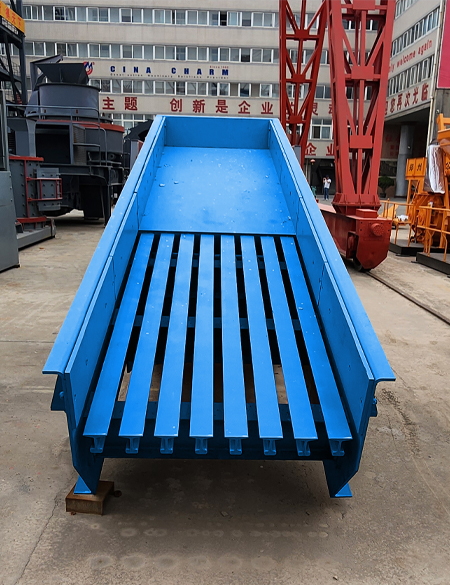

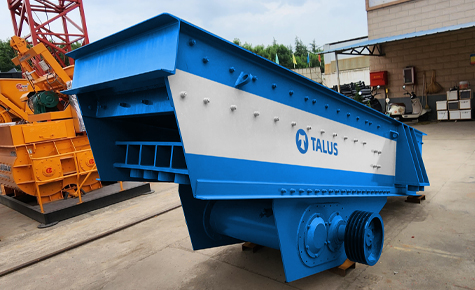

Vibrating Feeder

The ZSW vibrating feeder provides continuous and even feeding, and screen the materials for crushing machinery. It is widely used in mineral processing, construction materials, silicate, and chemical industries. The vibrating feeder boasts smooth vibration, reliable operation, and long service life etc.

Leave Message

Gallery send e-mail sales05@cinacharm.com

Home > Products > Feeding / Screening Device >

Vibrating Feeder

Leave Message

Gallery send e-mail sales05@cinacharm.com

Product show

Leave Message Online

Technical Parameter

Model	Max. feeding particle size (mm)	Capacity (t/h)	No. of Motor	Motor power (kW)	Installation angle (%)	Trough size (mm)	Weight (t)	Overall dimension (L×W×H) (mm)
GZD180×80	300	30~80	4	2×1.5	0~10	1800×800	0.8	1907×964×890
GZD300×90	400	40~100	4	2×2.2	0~10	3000×900	3.6	3400×1020×900
ZSW380×96	500	120~210	6	11	0~10	3800×960	4.2	3880×1724×1180
ZSW420×110	650	180~400	6	15	0~10	4200×1100	4.8	4200×1804×1180
ZSW490×110	650	250~380	6	15	0~10	4900×1100	5.3	4976×1864×1180
ZSW590×110	650	280~400	6	22	0~10	5900×1100	6.13	5957×1648×1365
ZSW490×130	800	300~550	6	22	0~10	4900×1300	6.7	4976×2064×1180
ZSW600×130	800	340~600	6	30	0~10	6000×1300	7.8	6100×2004×1250
ZSW-600×160	1050	400~800	4	37	0~10	6000×1600	10.8	6400×3085×2395

Any change of the technical data shall not be advised additionally.

Customer success stories

Maintenance tips

1
The equipment should be lubricated according to requirements, and you should pay attention to the oil temperature, oil pressure, flow rate and other parameters.
2
When excessive noise or vibration occurs during the operation, the equipment should be shut down and inspected quickly.
3
Pay attention to the product quality and productivity, in order to solve the problem as soon as we find it.

Service Support

1000 engineers will always provide service for your project

2 hours

Give clear solutions

12 hours

Rush to customer site

24 hours

Solve the problem completely
