PE Jaw Crusher

PE series jaw crusher is a crushing equipment with high capacity independently manufactured by Talus Equipment Manufacturing, which is mainly used for crushing various materials with compressive strength not exceeding 320MP, and often used as primary crusher in all kinds of stone production lines and ore crushing production line, with the features of large crushing ratio, high output, uniform granularity, reliable operation, easy maintenance, low operating cost and so on.

PE Jaw Crusher

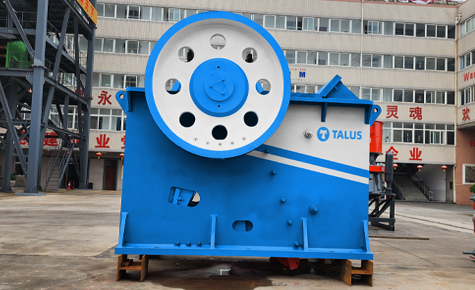

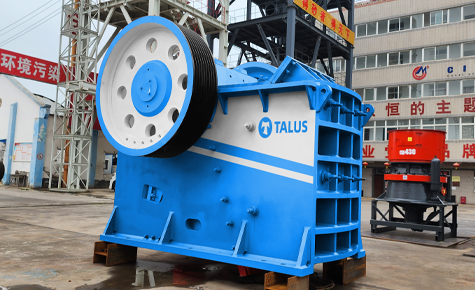

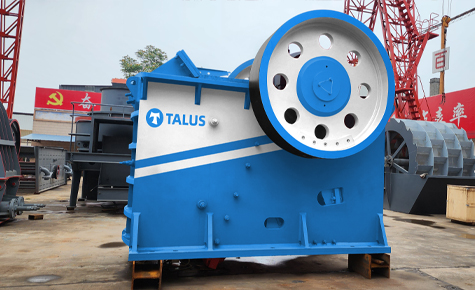

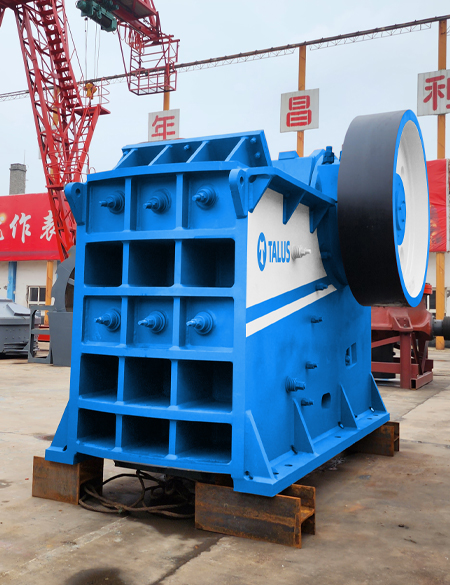

Product show

Leave Message Online

Technical parameter

Model	Feeding size(mm)	Max. feeding size(mm)	Adjustable discharge range(mm)	Capacity(t/h)	Eccentric shaft rotation(r/min)	Power(kW)	Overall dimensions(L×W×H)(mm)
PE-1600×2100	1600×2100	1500	300-400	1300-2200	160	380	6210×4013×4716
PE-1500×1800	1500×1800	1200	220-350	500-1000	180	280	5160×3660×4248
PE-1200×1500	1200×1500	1020	150-350	400-800	180	220	4200×3300×3500
PE-1000×1200	1000×1200	850	195-300	280-560	200	160	3480×2876×3330
PE-900×1200	900×1200	750	95-165	220-450	200	132	3380×2870×3330
PE-750×1060	750×1060	630	80-140	110-320	250	110	2660×2430×2800
PE-600×900	600×900	500	65-160	50-180	250	75	2190×2206×2300
PE-500×750	500×750	425	50-100	40-110	275	55	1980×2080×1870
PE-400×600	400×600	340	40-100	16-60	275	30	1730×1730×1630
PE-250×400	250×400	210	20-60	5-20	300	15	1300×1090×1270
PE-200×350	200×350	180	18-70	3-10	260	11	1000×870×990
PE-200×300	200×300	180	15-50	2-6	260	7.5	910×750×990
PE-150×250	150×250	125	10-40	1-3	250	5.5	720×660×850

Any change of the technical data shall not be advised additionally.

Maintenance tips

The equipment should be lubricated according to requirements, and you should pay attention to the oil temperature, oil pressure, flow rate and other parameters.

When excessive noise or vibration occurs during the operation, the equipment should be shut down and inspected quickly.

Pay attention to the product quality and productivity, in order to solve the problem as soon as we find it.
