PC/PCZ Series Hammer Crusher

The PCZ Series Heavy Hammer Crusher is suitable for crushing various medium-hard and below materials with a compressive strength not exceeding 150MPa and a calcium content higher than 40%, such as limestone. It has characteristics of special structure, simple operation, energy saving, good granularity of finished product, adjustable discharge particle size, and cost savings.

PC/PCZ Series Hammer Crusher

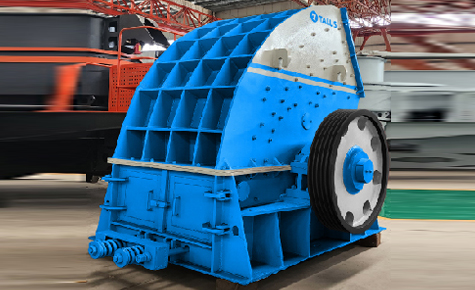

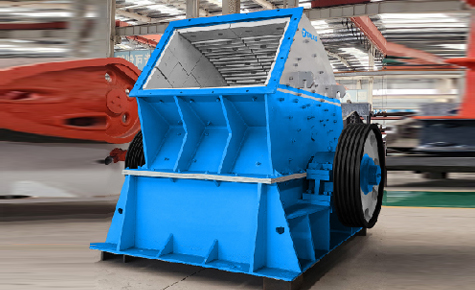

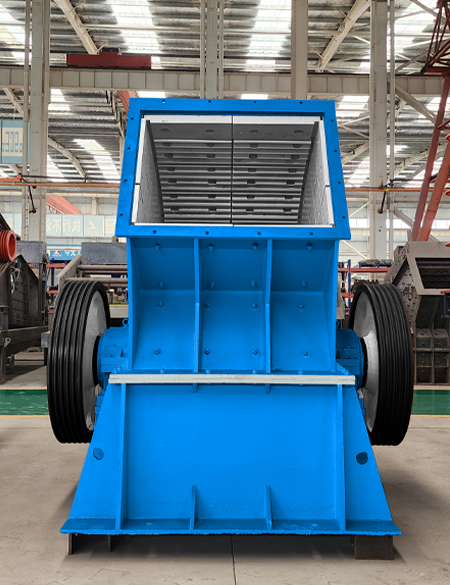

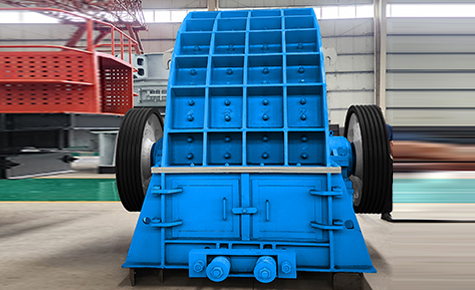

Product show

Leave Message Online

Performance Parameters

Model	Rotor diameter × length (mm)	Feeding opening size (mm)	Feeding size (mm)	Production capacity (t/h)	Motor power (kw)	Overall dimension (L×W×H)(mm)
XGN-Z1310	1310×1050	890×1075	≤650	150-180	160	2950×2250×2495
XGN-Z1512	1500×1160	1200×900	≤750	250-320	160×2	3260×2624×2750
XGN-Z1513	1500×1350	1290×900	≤750	300-350	180×2	3260×2624×2750
XGN-Z1615	1650×1452	1500×1200	≤1000	420-500	220×2	3667×2937×3436
XGN-Z1818	1850×1800	1500×1280	≤1200	570-670	250×2	3680×3350×3515
XGN-Z1620	1660×1900	2000×1200	≤1200	800-1000	400×2	3667×3200×3436
XGN-Z1820	1800×1964	2000×1200	≤1200	1000-1200	450×2	3700×3270×3515
XGN-Z2020	1920×2000	2010×1200	≤1500	1200-1600	450×2	4160×3920×3520
XGN-Z2122	2130×2260	2240×1550	≤1500	1800-2200	1000	4990×4385×4360
XGN-Z2225	2200×2485	2530×1560	≤1600	2000-3000	1250	4460×4565×4670
XGN-Z3332	3300×3220	3300×1840	≤1800	4500-6000	(1250kw-6)×2	6710×6122×6340

Any change of the technical data shall not be advised additionally.

Maintenance tips

The equipment should be lubricated according to requirements, and you should pay attention to the oil temperature, oil pressure, flow rate and other parameters.

When excessive noise or vibration occurs during the operation, the equipment should be shut down and inspected quickly.

Pay attention to the product quality and productivity, in order to solve the problem as soon as we find it.
