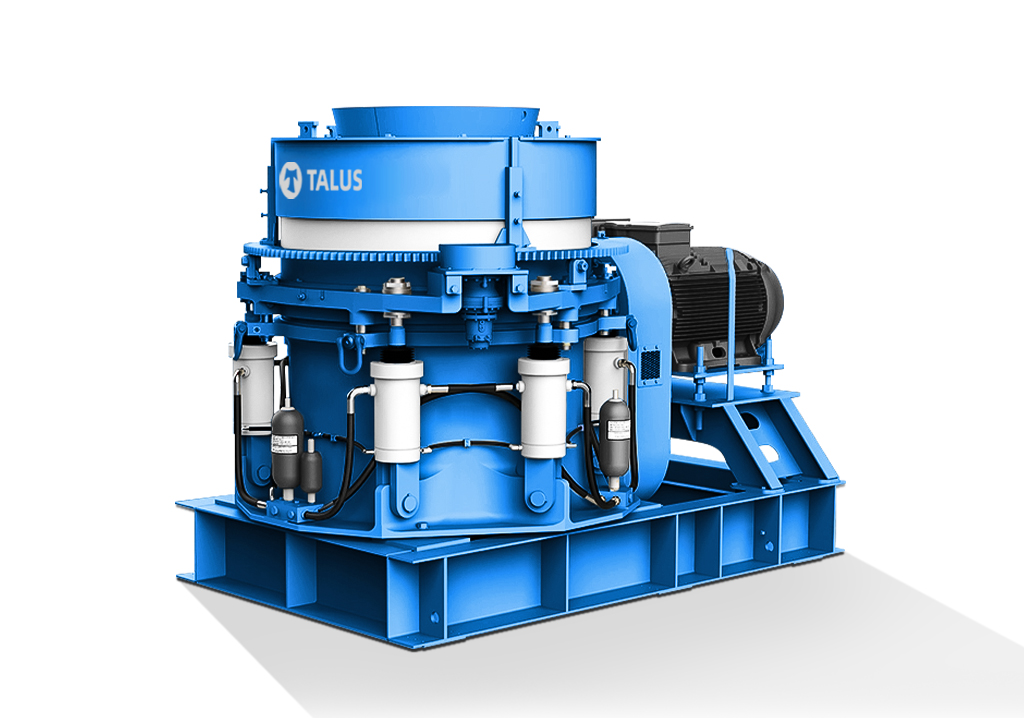

HP Multi Cylinder Hydraulic Cone Crusher

The HP series multi cylinder hydraulic cone crusher is developed and manufactured by our company incorporating foreign technology. It is suitable for crushing various ores and rocks with medium and above hardness, and is characterized by low energy consumption, high crushing force, high reliability, large production capacity, high automation, simple operation and maintenance, good granularity of products, and low maintenance cost of wearing parts.

HP Multi Cylinder Hydraulic Cone Crusher

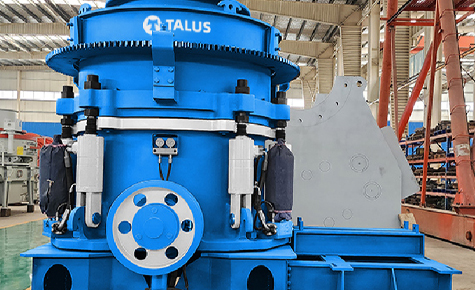

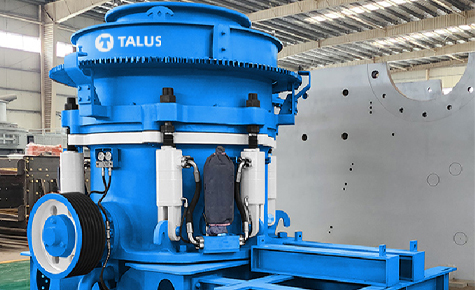

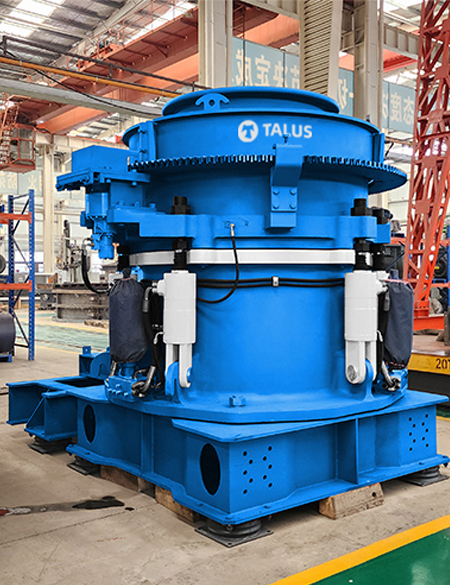

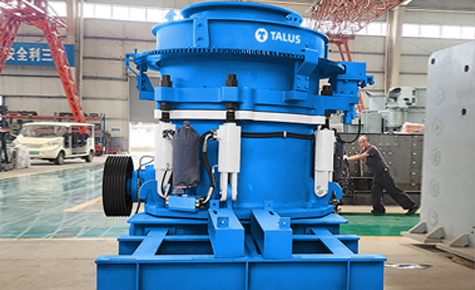

Product show

Leave Message Online

Technical Parameter

Model	Cavity	Diameter of bottom end of conical crushing head (mm)	Feeding opening size (mm)	Max. feeding size (mm)	Nominal capacity in t/h with crusher running at CSS (mm)	Crushing capacity (t/h)	Motor power (kW)	Host weight (t)
HPM200	C1	900	185	145	22	160~250	160	11
	C2		125	100	18	145~250
	C3		95	75	14	120~250
	F1		76	60	12	108~210
	F2		54	45	10	81~210
HPM300	C1	1100	235	190	26	230~445	220	20
	C2		211	170	20	200~445
	C3		150	120	16	180~445
	C4		107	85	14	160~220
	F1		53	40	12	140~220
HPM400	C1	1400	299	240	35	270~630	315	27
	C2		252	200	25	252~630
	C3		198	160	25	243~630
	C4		111	190	18	210~630
	F1		92	75	15	162~370
	F2		52	40	13	126~370
HPM500	C1	1500	335	270	38	365~790	400	40
	C2		286	230	30	328~790
	C3		204	165	22	280~790
	C4		133	105	20	202~450
	F1		95	75	16	175~450
	F2		52	42	8	158~450
HPM650	C1		328	262	30	386~790	500
	C2		279	225	25	348~790
	C3		196	175	20	300~790
	F1		106	85	13	280~530
	F2		52	42	9	220~530
HPM800	C1	2000	353	280	38	616~1100	630	70
	C2		297	240	38	522~1100
	C3		267	214	25	495~1100
	C4		219	175	22	380~1100
	F1		155	125	20	328~730
	F2		92	75	16	270~730

Any change of the technical data shall not be advised additionally.

Maintenance tips

The equipment should be lubricated according to requirements, and you should pay attention to the oil temperature, oil pressure, flow rate and other parameters.

When excessive noise or vibration occurs during the operation, the equipment should be shut down and inspected quickly.

Pay attention to the product quality and productivity, in order to solve the problem as soon as we find it.

HP Multi Cylinder Hydraulic Cone Crusher

HP Multi Cylinder Hydraulic Cone Crusher

Product show

Technical Parameter

Customer success stories

Maintenance tips

Service Support

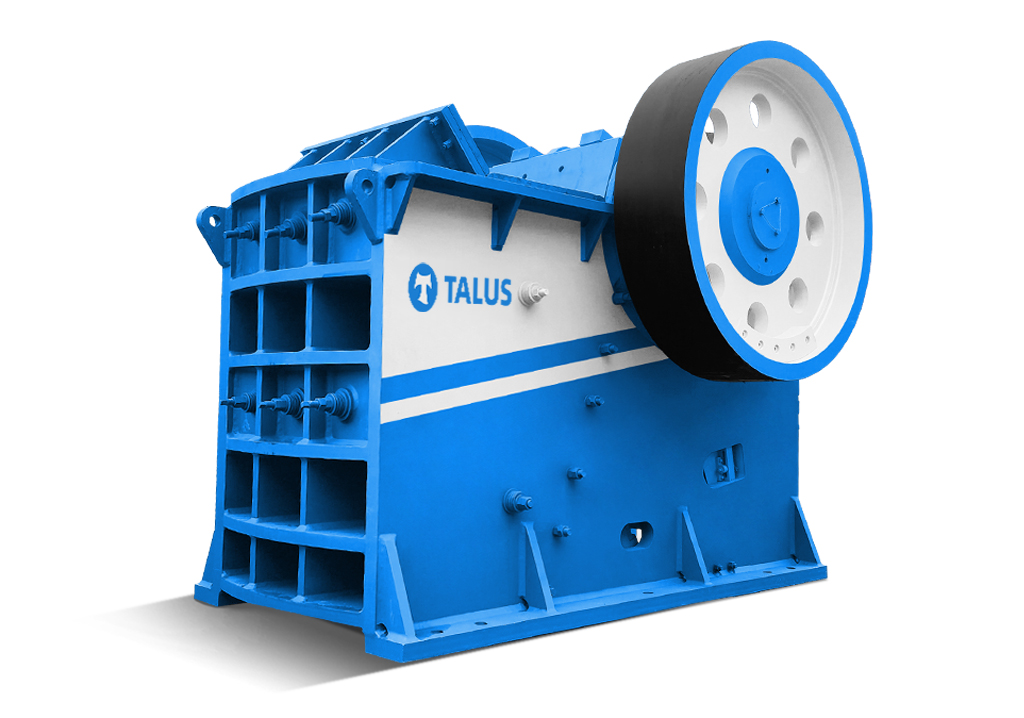

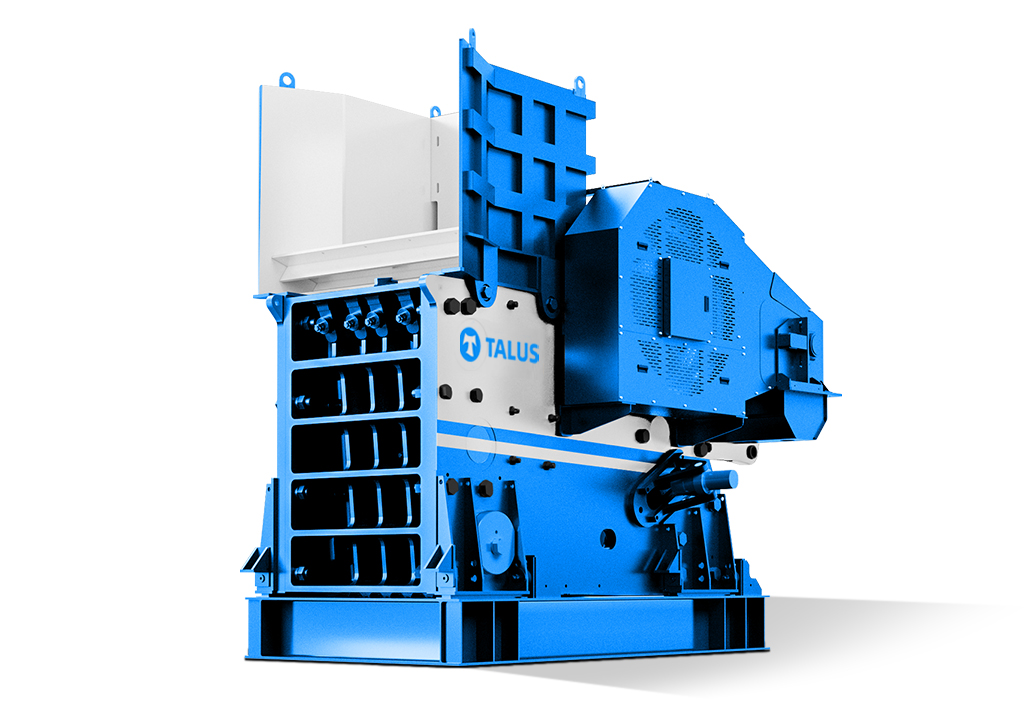

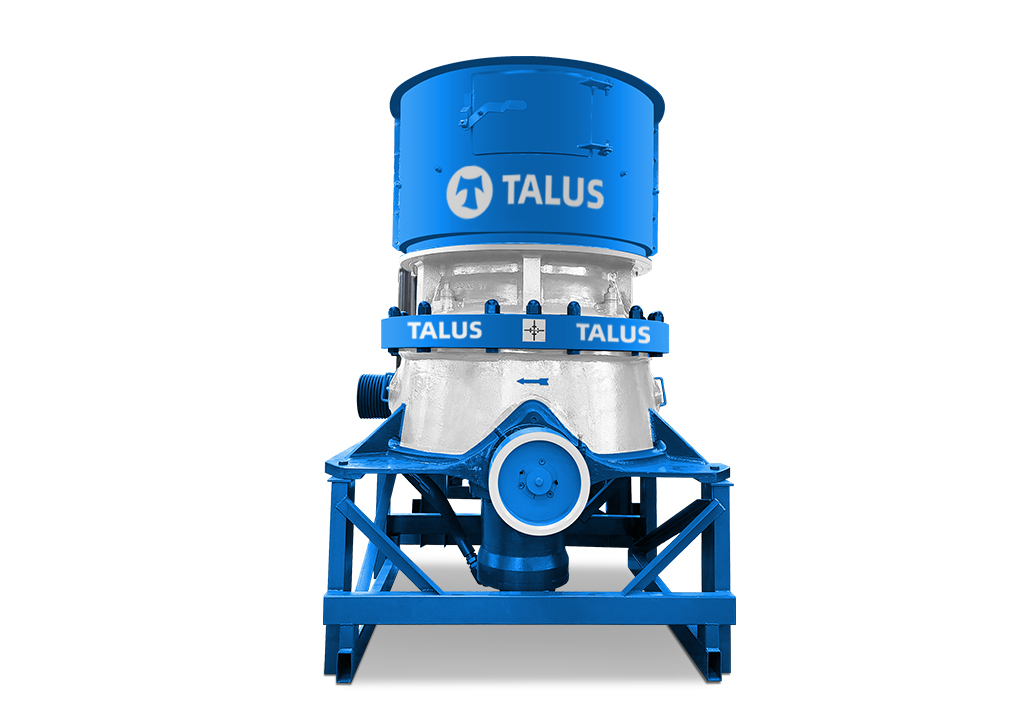

More Crushing Equipment you may interest
