CLV Vertical Shaft Impact Sand Making Machine

CLV vertical shaft impact sand maker can not only be used for sand making and reshaping of hard rocks and fine crushing of ore, but also be used for solid waste treatment, such as construction waste, coal gangue, tailing, etc. Now it is the ideal energy saving and environmentally friendly high efficiency sand making and reshaping equipment in the market at present.

Leave Message

Gallery send e-mail sales05@cinacharm.com

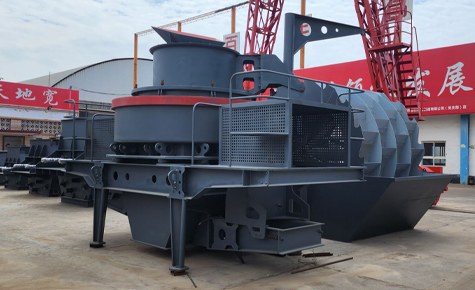

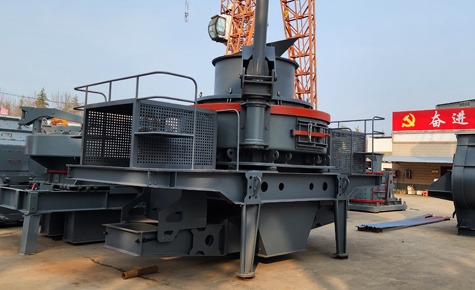

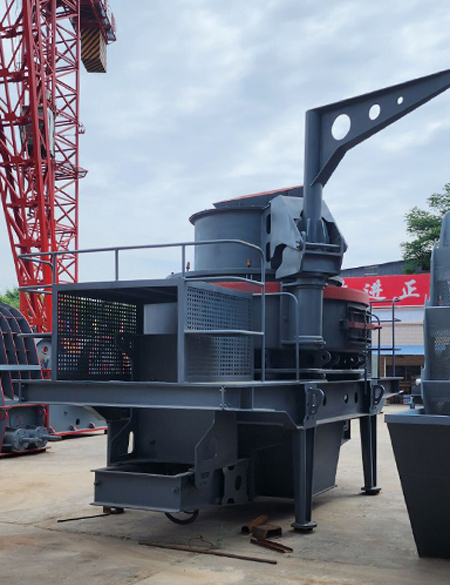

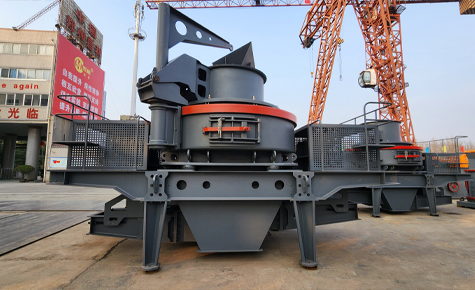

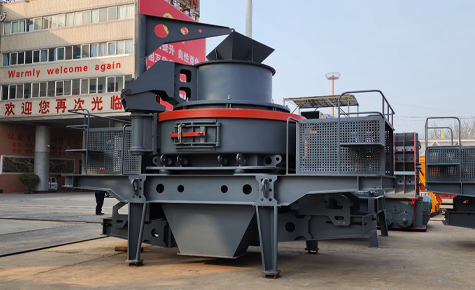

Product show

Leave Message Online

Technical specification

Model	Throughput (t/h)		Max. feeding size		Rotation speed	Dual motor drive power	Overall dimension
Model	Central feeding with circular cascade feeding	Fully central feeding	Soft material(mm)	Hard material(mm)	Rotation speed	Dual motor drive power	Overall dimension
CLV7615	150~280	70~140	35	30	1710~1900	75×2	4100×2330×2300
CLV8522	240~380	120~200	40	35	1530~1700	110×2	4140×2500×2700
CLV9532	350~540	180~280	45	40	1380~1550	160×2	4560×2600×2900
CLV1145	500~640	250~640	50	45	1200~1390	220×2	5100×2790×3320
CLV1150	550~745	344~368	55	45	1000~1300	250×2	5500×2750×3950
CLV1263	650~850	454~486	60	50	900~1200	315×2	5700×2980×4190

Any change of the technical data shall not be advised additionally.

Maintenance tips

The equipment should be lubricated according to requirements, and you should pay attention to the oil temperature, oil pressure, flow rate and other parameters.

When excessive noise or vibration occurs during the operation, the equipment should be shut down and inspected quickly.

Pay attention to the product quality and productivity, in order to solve the problem as soon as we find it.
