CJ Series Euro-style Jaw Crusher

CJ series Euro-style jaw crusher is a jaw breaker with extraordinary performance introduced and developed by our company according to customer’s market requirements. Different from the traditional jaw crushers, there are significant improvements in the crusher movement parameters, structural forms and adjustment method. CJ series jaw crusher occupies less space, has a larger crushing ratio and high operation stability, and is more advantageous in transportation, installation, maintenance and adjustment, etc. It is especially suitable for fixed crushing production lines and mobile crushing plants.

Leave Message

Gallery send e-mail sales05@cinacharm.com

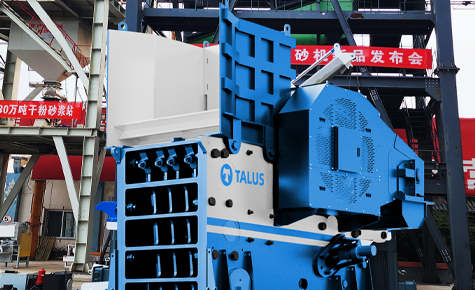

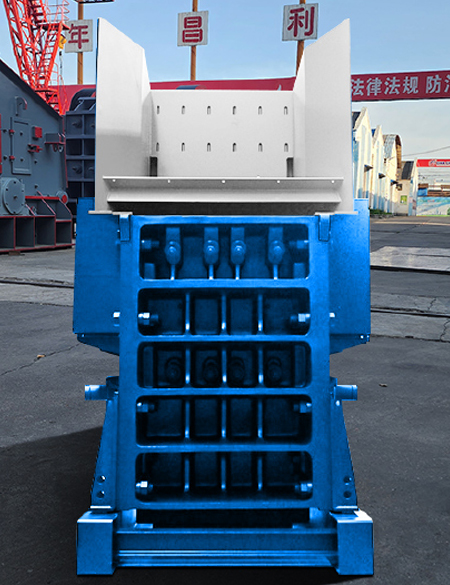

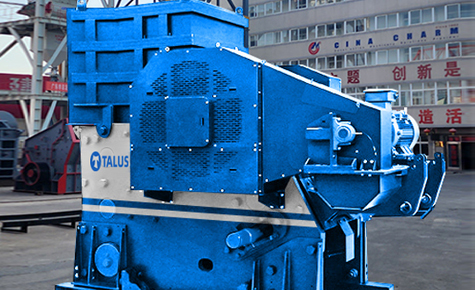

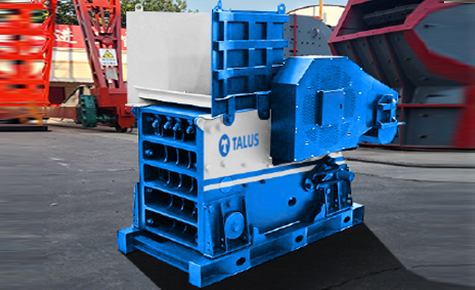

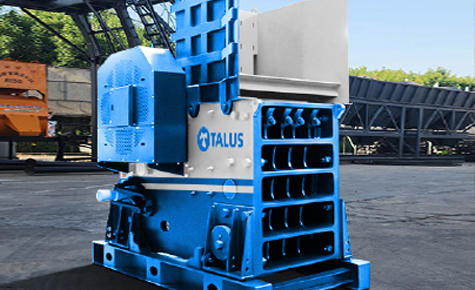

Product show

Leave Message Online

Technical Parameter

Model	Max. feeding size(mm)	Feeding opening size(mm)	Range of discharging opening(mm)	Capacity(t/h)	Motor power (kW)	Overall dimension(L×W×H)(mm)
CJ96	480	930×580	60~175	105~390	4P 90	2850×2270×1950
CJ106	560	1060×700	70~200	150~500	4P 110	3280×2580×2400
CJ120	700	1200×870	70~200	175~610	4P 160	3700×2790×2950
CJ125	760	1250×950	100~250	270~831	4P 160	4230×2780×2960
CJ150	960	1400×1200	125~250	340~880	4P 200	5030×3440×3970
CJ160	960	1600×1200	150~300	430~1145	4P 250	5780×3460×3580
CJ200	1200	2000×1500	175~300	630~1435	6P 400	6600×4030×4400
CJ1511	850	1500×1070	125~300	425~1195	6P 200	4130×3000×3330
CJ1513	1040	1500×1300	150~300	530~1280	6P 200	4620×2890×4190

Any change of the technical data shall not be advised additionally.

Maintenance tips

The equipment should be lubricated according to requirements, and you should pay attention to the oil temperature, oil pressure, flow rate and other parameters.

When excessive noise or vibration occurs during the operation, the equipment should be shut down and inspected quickly.

Pay attention to the product quality and productivity, in order to solve the problem as soon as we find it.
